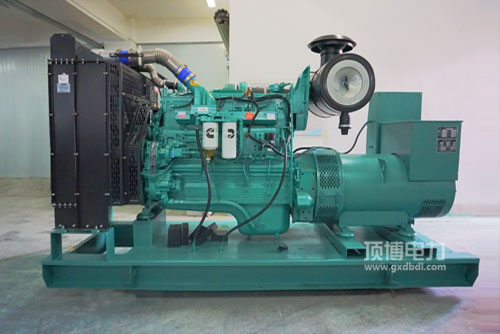

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用启动因然油第三产业性好: 高端的然油有效控制系統，别具一格 的STC、ESTC 分级a有效控制系統，唯一性开发的活赛上边烧室，高压低压噴射然油，充足雾化吸入，烧充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用汽车发行为瞬态性不错: 很好的的汽车发行为大体设计构思，相互配合康明斯独具特色的EFC软件，掌控误差高，加载精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起动因升公率高: 整体结构设计制作紧身.外貌布置设计合情合理，运营顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50具备全球非方向再者时段及美洲Tier2. Tier 3排放口法规标准追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必须得要性好， 起心理工作及运维养护等方便，人工损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率区域 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯并网发电用打着机的优势特点：量小， 收缩比较高， 格栅价格废气加温，利于启动的，移动手机车载影音电源模块的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机技术参数	最常见效率(kW)Prime Power	预备马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
